Product Description The fischer Aircrete anchor GB is an officially approved special anchor for safety-relevant fixings in aerated concrete. The GB, made from high-quality nylon, is hammered in rotary mode after pre-drilling. The characteristic outer ribs ensure an interlocking connection between the building material and anchor. The fischer Aircrete anchor GB is ideal for fixing facade and roof constructions as well as railings in aerated concrete
Features Advantages
The spiral-shaped outer ribs cut a positive fit in the soft building material, thus ensuring the best pressure distribution and load-bearing capacity.
Can be applied with a hammer - there is no need for special tools, thus saving time and money for the installation.
The GB can also be used safely outside (e.g. in façade installation) when combined with the approved fischer safety screw in A4.Specification Applications
Light cable trays

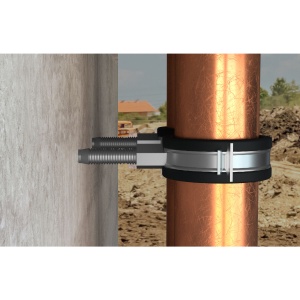

Pipelines
Guard rails
Façade and roof constructions made of wood and metal
Light canopy brackets
Letter boxes
TrellisBuilding materials
Suitable for: Aerated concrete with compressive strength 2 to 4 N/mm²
Aerated concrete wall or ceiling boards with compressive strength 3.3 to 4.4 N/mm²Functionality
The GB is suitable for pre-positioned installation.

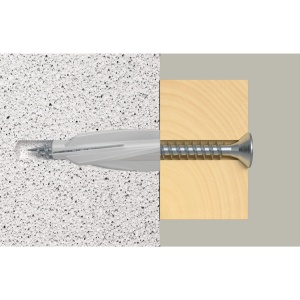

The spiral-shaped outer ribs ensure a positive fit connection between the building material and anchor.
The required screw length is given by: Anchor length + fixture thickness + 1 x screw diameter.
Use rotary drilling to create the drill hole
Can be used in unplastered aerated concrete
