Fischer - Screw - FFS Type
Fischer - Screw - FFS Type
Fischer - Screw - FFS Type
Fischer - Screw - FFS Type
Chevron Down
Fischer - Screw - FFS TypeFischer - Screw - FFS TypeFischer - Screw - FFS TypeFischer - Screw - FFS Type

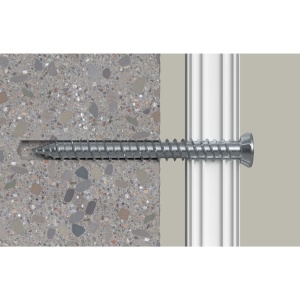

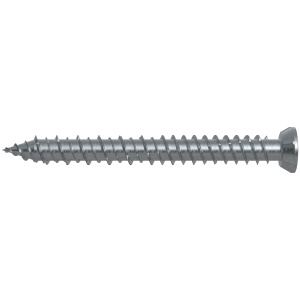

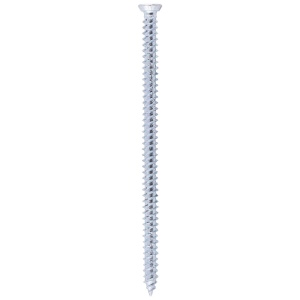

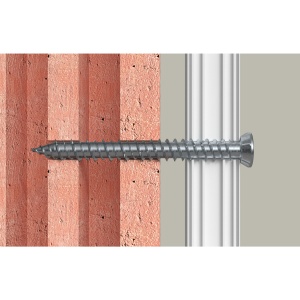

The fischer window frame screw FFS is a special screw (with a length of up to 302 mm) with a flat head for the cost-effective installation of window frames without plugs. The flat head design is particularly suitable for window frames made from aluminium and plastic. The ift Rosenheim Testing Institute confirms their special suitability for the fixing of plastic windows into brick masonry. The small drill hole diameter of 6 mm and the screwing-in of the screw without cleaning the drill hole enable efficient series fixings. The high-deep thread on the screw tip and the milled ribbing reduce the screw-in torque and enable an energy-saving installation. The continuous special thread prevents the window frame from being pulled against the substrate. This means that the frame is secured to the building material without tensile force or stress.

Read more Chevron Right

Fischer - Screw - FFS Type - Frame Anchor

From £7.20
From £8.64
per 100
Size/Model No. Stock No. Price per hundred Available
Stock
Quantity
7.5 x 42mm 62379101-43-64
£7.20
£8.64
cat: £7.20
cat: £8.64
2 days
7.5 x 62mm 62396101-43-72
£7.51
£9.01
cat: £7.51
cat: £9.01
10
7.5 x 72mm 532927101-43-80
£10.32
£12.38
cat: £10.32
cat: £12.38
2 days
7.5 x 82mm 532928101-43-98
£8.97
£10.76
cat: £8.97
cat: £10.76
107
7.5 x 102mm 68956101-44-06
£15.02
£18.02
cat: £15.02
cat: £18.02
2 days
7.5 x 112mm 532932101-44-14
£17.08
£20.50
cat: £17.08
cat: £20.50
50
7.5 x 122mm 68957101-44-22
£17.93
£21.52
cat: £17.93
cat: £21.52
111
7.5 x 132mm 61553101-44-30
£22.69
£27.23
cat: £22.69
cat: £27.23
2 days
7.5 x 152mm 532941101-44-48
£36.19
£43.43
cat: £36.19
cat: £43.43
2 days

More Products to Explore

Product Description

The fischer window frame screw FFS is a special screw (with a length of up to 302 mm) with a flat head for the cost-effective installation of window frames without plugs. The flat head design is particularly suitable for window frames made from aluminium and plastic. The ift Rosenheim Testing Institute confirms their special suitability for the fixing of plastic windows into brick masonry. The small drill hole diameter of 6 mm and the screwing-in of the screw without cleaning the drill hole enable efficient series fixings. The high-deep thread on the screw tip and the milled ribbing reduce the screw-in torque and enable an energy-saving installation. The continuous special thread prevents the window frame from being pulled against the substrate. This means that the frame is secured to the building material without tensile force or stress.

Features


Advantages

  • Screw installation without plug for economical processing.
  • The small drill bit diameter of 6 mm allows for efficient series installation.
  • The continuous thread ensures a stress-free fixing of the frame in the substrate.
  • The high-low-thread at the screw tip as well as several cutting notches reduce the amount of force required for screwing in the screws. The installation process can be completed without excessive effort.
  • With two head types applicable for all common frame materials.
  • According to the ift Rosenheim suitable for the fixation of a plastic window in brick masonry.

    Specification


    Applications

  • Window frames made of wood, plastic and aluminium
  • Door frames
  • Squared timbers

    Building materials

  • Concrete
  • Vertically perforated brick
  • Hollow blocks made from lightweight concrete
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Solid brick made from lightweight concrete
  • Solid brick
  • Aerated concrete

    Approvals

  • 14-000559-PRO2

    Functionality

  • Note the drill hole and screw-in depths for the different building materials listed in the table.
  • Cylinder head screws are recommended for recessed installation in wooden profiles.
  • Flat head screws are recommended for installation in plastic and aluminium profiles.
